LineMak 4 Camera kit, 1/3.5" HDIS CMOS Sensor, 900TVL with 4Ch DVR,

Visit my store ebay

Analog Camera KitsModel: LS-DVK6304TSH-CV01• Kit of 4 analog cameras, 900TVL.
• D1 resolution. Pentaplex function.
• 24pcs LED. 65ft IR distance.
• Recording and playback are available in mobile phone.

Analog Camera KitsModel: LS-DVK6304TSH-CV01• Kit of 4 analog cameras, 900TVL.
• D1 resolution. Pentaplex function.
• 24pcs LED. 65ft IR distance.
• Recording and playback are available in mobile phone.
Kit of 4 cameras, 1/3.5" HDIS CMOS Sensor, 900TVL with DVR of 4-channel, H.264/G.711A Compression format, D1 resolution, Pentaplex function.Kit of 4 cameras ideal for monitoring homes, offices or local chambers, is easy to install and can see the images captured by the cameras via internet.

The 4 cameras contain a sensor 1/3.5" CMOS Color HDIS that provides a resolution of 900 TVL and one 3.6mm board lens, his crown of 24 LEDs 5mm each, allows a night vision of 65 feets, these cameras are designed to be installed indoors.

The DVR is designed for the connection of 4 incoming channel and 3 output channels (BNC, VGA and HDMI), recorded in H.264 format in real time, has a compact size to be placed anywhere, has two USB ports 2.0 and a network port RJ-45, encode 100/120fps at D1 format, playing from 1 to 4 channels simultaneously supports remote access.

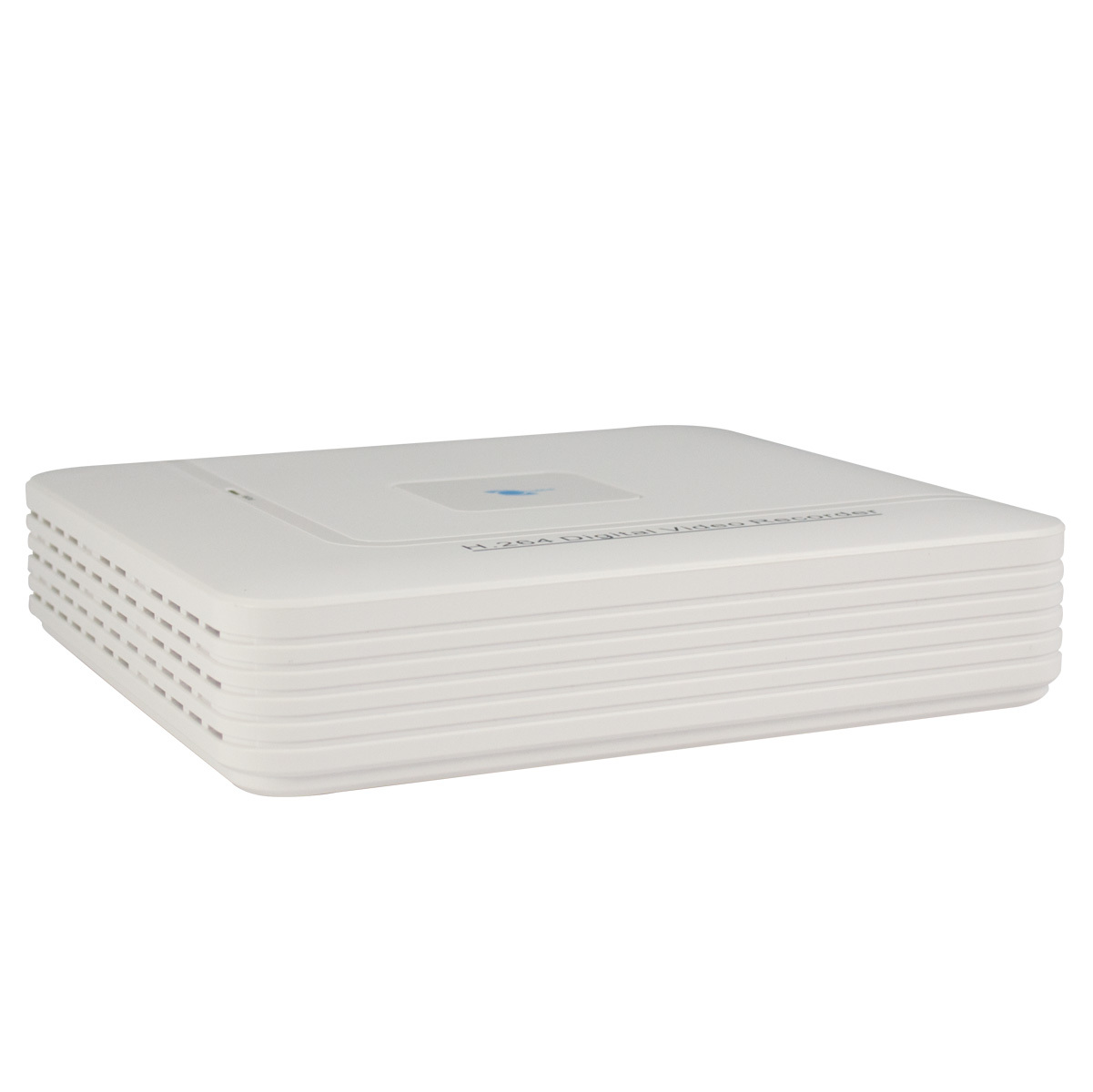

Digital Video Recorder (DVR) LS-SEDVR6304TSH

This DVR (Digital Video Recorder) is an easy to use device with simultaneous BNC, VGA and HDMI outputs. Monitor your cameras on the Internet everywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time.

This video surveillance equipment can record images registered by their cameras and is very easy to use.

Multiple recording modes: Manual, alarm, motion detection and continuous.
Control method: USB mouse.
Compatible with: WIN98 / WIN2000 / WIN ME / WIN XP / VISTA WIN / WIN SEVEN.

Main features:
- H.264 main profile compression algorithm ideal for standalone DVR.
- 4 channels real-time full D1 recording and real time multi-channels playback.
- VGA output and TV output at the same time, genuine high-definition VGA output.
- Remote network and mobile monitoring for iPhone, Blackberry, Android, Symbian and Windows mobile, module by USB 2.0 port.
- Multiple control methods: front panel, IR remote controller, USB mouse.
- 2 USB 2.0 port for mouse, backup, DVD-RW, movable hard disk, upgrade, etc.
- Alarm triggering screen tips, buzzer, PTZ preset, email, snapshot and FTP upload.
- Smart HDDs management: non-working HDD hibernating, HDD faulty alarm, raid function.
- Powerful network software: built-in web server, multi-DVR client and SMS networking access for remote live viewing, recording, playback, setting, system status, event log, email and FTP function.
- DHCP / PPPOE / FTP / DNS / DDNS / NTP / email alarm / IP right management / IP search / network alarm center functions, support WEB client, standalone client and SDK.
- Sound system protection circuit feature, unique triple watchdog function, and very low power consumption to ensure equipment functionality.
- 20 different languages (English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish, Vietnamese, Ukrainian, Romanian, Brazilian, Korean).
- Motion detection: zones: 396 (22-18) detection zones, sensitivity: 1-6 (6 is highest) trigger recording, PTZ movement, tour, alarm, email, snapshot.

Hard drive and remote control not included.
This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.


Indoor Camera LS-TC4052CB06

Dome camera with 3.6mm board lens and a viewing angle of 95° which has a 65ft range of infrared night vision, and a 24 pcs LEDs 5mm each. Top of the line equipment regarding sensor and driver technology.

This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

For best results, regarding image quality, use our servers and video recorders (DVR, NVR, HVR). See this camera online through any of our recording systems.

Power adapter not included.
This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.


Outdoor Camera LS-TC3066CB06

IR Waterproof high resolution Bullet camera with a 1/3" HDIS color CMOS Sensor and 900TVL of resolution which has a 3.6mm lens, a 92° viewing angle, a 65ft range of infrared night vision, and 24pcs 5mm LEDs each. Available in gray. Latest technology of sensor and driver adopted.

This equipment designed for outdoors can be easily installed anywhere. Resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no lighting.

Using servers and digital video recorders for good results in image quality is recommended. You can see this camera online through any of our recording systems.

Power adapter not included.
This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.


Package Contents:
- 1 Digital Video Recorder (LS-SEDVR6304TSH).
- 2 Dome cameras (LS-TC4052CB06).
- 2 Bullet cameras (LS-TC3066CB06).
- 1 Power supply.
- 4 Video Cable and DC Cable 65ft each.
- 1 5-Way power cable spliter.
- 1 Cable BNC (F) to RCA (M), 5ft.
- 1 Mouse.
- Manual.
- Software.
IR Illumination Gives Your Cameras Night VisionIR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.Weatherproof Cameras in a year-round ProtectionOur outdoor weather-resistant cameras feature at least an IP66 weather rating. Our outdoor cameras are built to keep out small particles such as dust, and are unaffected by a range of weather conditions including heavy rain and snow.H.264 Video Compression Reduces Storage RequirementsH.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.HDMI Delivers Enhanced Image ClarityHDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.Keep everything under watch with Multiple Recording ModesMultiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.Accurate Alarm Recording allows you to cover the whole EventThis feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.Remote Setup to Access the DVR Screen settingDVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.Be InformedThe DVR will automatically send an email alert with a text notification when an event triggered by motion has occurred. This provides a record of the event and enables you quickly to take action when an incident occurs.Motion Detection RecordingPre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event. Backup for Saving Critical Video EvidenceThe recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.Monitoring 3GMonitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happinessAutomatic Electronic Shutter (AES) To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.Auto White Balance (AWB)Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes. Remotely SurveillanceThis function enables users to view live video on a PC or laptop from just about anywhere in the world with internet access. To make remote viewing even easier, the user simply types in the IP address of the network security camera in his/her internet browser like it would be for a website.
4-Ch DVR, H.264/G.711A, VGA/BNC/HDMI output, D1 Resolution, PentaplexGeneralBrandLineMakModelLS-SEDVR6304TSHSystemMain processorHigh performance embedded micro-processor HI3515Operating systemEmbedded LinuxSystem resourcesPentaplex function: live recording, playback, backup, remote accessDisplayDisplay area1/4Graphic user interface (GUI)GUI, on-screen menu tipsVideoResolutionD1Video formatPAL/NTSCCompression formatH.264 main profileEncode capacity100/120fpsFrame ratePAL: 50fps
NTSC: 60fpsVideo recordingPAL: 1~25fps
NTSC: 1~30fpsAudioAudio compressionG.711ARecording & PlaybackRecording modeManual, alarm, motion detection, continuousLocal playback1-4 simultaneously Search modeTime-date, alarm, motion detection, exact search (accurate second). Storage & BackupSpace ocupationVideo: 25-450MB/H
Audio: 28.8MB/HRecord storageLocal hard disk and network Backup modeNetwork download, flash stick, movable HDD, SATA HDD and DVD-RWInterfaceVideo input/outputInput: 4-Ch BNC
Output: 1-Ch BNC (1.0Vp-p, 45Ohm), 1.Ch VGA and 1-Ch HDMIAudio input/outputInput: 1-Ch
Output: 1-ChPTZ Control1 RS485 portUSB Port2 2.0 PortsHDD Port1 SATA (Max 3 TB)Network interface1 RJ-45 (10M-100M)SecurityMotion detection zoneZones: 396 (22/18)
Sensitivity: 1-6Event notificacionTrigger recording, PTZ movement, tour, alarm, email, snapshot, FTPEnvironmentOperation temperature0ºC ~ 55ºC
32ºF ~ 131ºFWorking humidity10% ~ 90%Atmosphere pressure86kpa ~ 106kpaPowerPower supply12V/2APower consumption<10W (Hard disk not included)AppearanceColorWhiteAccessoriesMouseYesDome Camera, HDIS CMOS Sensor, 900TVL, 3.6mm lens, 24 LEDs, 65ft IRGeneralBrandLineMakModelLS-TC4052CB06SensorResolution900TVLSensor1/3.5" HDIS Color CMOSEffective pixelsPAL: 752*582
NTSC: 768*794VideoVideo formatPAL/NTSCVideo outputBNC (1.0Vp-p, 75Ohm)LensLensBoard lens 3.6mmIR Range65ft IR distanceLEDs24pcs (5mm each)Minimum illumination0 Lux (when LED on)Viewing angle95ºEnvironmentOperation temperature-10ºC ~ 50ºC
14ºF ~ 122ºFPowerPower supplyDC12VPower consumption300mAAppearanceColorWhiteSpecial functionAuto White Balance (AWB)NoElectronic shutter speed (AES)1/50 ~ 1/100000Auto Gain Control (AGC)NoDigital Noise Reduction (DNR)NoWide Dynamic Range (WDR)NoMirrorNoAdaptive Tone Reproduction (ATR)NoHigh Light Compensation (HLC)NoCalling routing system (CRS)NoStandardSynchronizing systemInternalS/N Ratio>50dBBullet camera, HDIS CMOS Sensor, 900TVL, 3.6mm lens, 24 LEDs, 65ft IRGeneralBrandLineMakModelLS-TC3066CB06SensorResolution900TVLSensor1/3.5? HDIS Color CMOSVideoVideo formatPAL/NTSCVideo outputBNC (1.0Vp-p, 75Ohm), Composite outputLensLens3.6mmIR Range65ft night visionLEDs24pcs (5mm each)Minimum illumination0 Lux (when IR On)Viewing angle95ºEnvironmentOperation temperature-20ºC ~50ºC
-4ºF ~ 122ºFWeatherproof standarIP66 (dustproof and waterproof)PowerPower supplyDC12V /- 1VPower consumption500mAAppearanceColorGreySpecial functionAuto White Balance (AWB)YesElectronic shutter speed (AES)1/50 ~ 1/120000Auto Gain Control (AGC)NoDigital Noise Reduction (DNR)NoWide Dynamic Range (WDR)NoMirrorNoAdaptive Tone Reproduction (ATR)NoHigh Light Compensation (HLC)NoCalling routing system (CRS)NoStandardScanning system2:1 interlaceSynchronizing systemInternalS/N Ratio>50dBGamma correction0.45 DVR, 16Ch DVR, H264, BNC/VGA/HDMI outputs, Audio 16Ch in/1Ch out, D1 Analog Camera Kits, Kit 8 cameras, HDIS CMOS Sensor, 900TVL, H264/G711A, D1/CIF, Pentaplex Analog Camera Kits, Kit of 4 cameras, SONY CCD Sensor, 700TVL, OSD menu, H264/G711A, D1 Others, LCD 19 inch monitor special for CCTVShippingReturnWarrantyContactPayment
